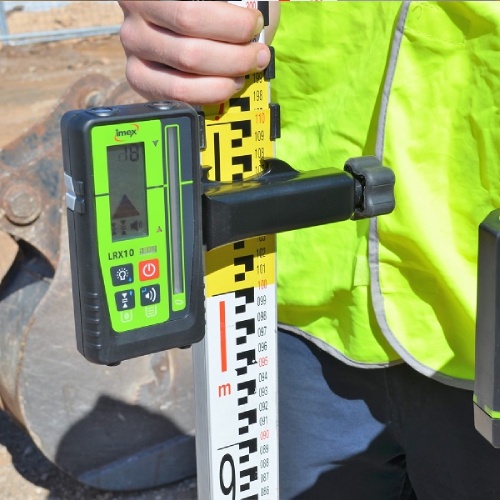

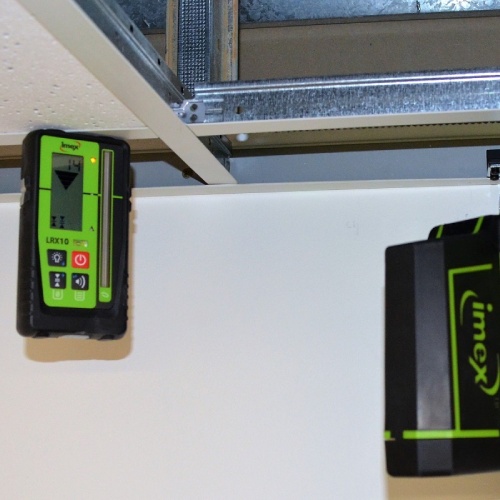

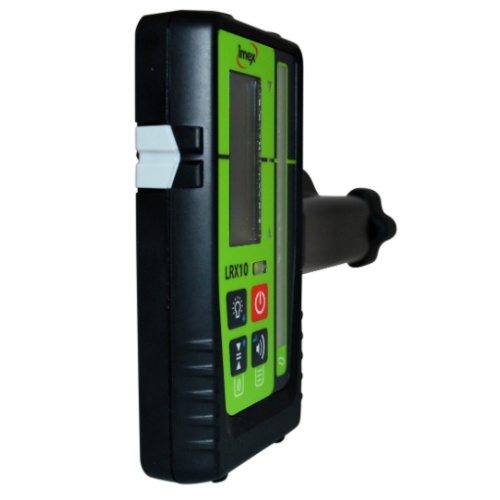

LRX10 mm Reading Digital Detector

Take the guess work out of levelling with the mm reading Imex detectors. Up to 0.5mm reading in up to a 90mm window. The Imex Digital Detectors range increases your accuracy and efficiency.

  • 90mm Detection Window
  • Red or Green beam pick-up
  • 0.5mm up to 10.00mm reading increments
  • Heavy Duty, Waterproof and Shockproof
  • Made in Germany
  • 3 Year Warranty
Request more information about this product
Categories:

Description

LRX10 Specifications

Imex LRX10 Specifications
Part Number 012-LRX10
EAN 9342649001989
Detection Window 90mm +60 to -30
Range 300m Radius
Detectable Spectrum Red, Green Laser
Resolution Fine – 1.0mm, Medium – 2.0mm, Course – 5.0mm, Ultra-Course – 10.0mm
Magnets 2 x Topface
Drop test on concrete 1.5m Height
Waterproof, Shockproof Rating IP67
