The DXL4 Cable Avoidance Tools from C.Scope represent a significant advance in cable detecting performance.
Two versions of the DXL4 are available; the DXL4-D which has full data logging capability, and the DXL4-DBG which has full data logging capability, Bluetooth™ connectivity and GPS.
Innovative new features have been introduced and the popular existing modes of detection have been enhanced to allow the DXL4 Cable Avoidance Tool to successfully detect even the hardest to find pipes and cables. Particular attention has been paid to effect better working practices and to minimise the potential for human error to impact on operating performance.
IMPROVED PERFORMANCE ACROSS ALL FOUR DETECTION MODES
The DXL4 Cable Avoidance Tool has improved performance across all modes of detection; Power, Radio, Generator and AllScan, whilst remaining easy to operate ensuring there is only a minimal need for training or retraining.
DEPTH MEASUREMENT
The DXL4 when used alongside an SGA4 or SGV4 Signal Generator will measure and indicate the depth of buried pipes, cables and sondes at the push of a button.
SIMULTANEOUS DUAL-FREQUENCY
The simultaneous dual-frequency 33kHz and 131kHz signal output of the Signal Generators is ideal for maximising the number of buried services that can be energised and then detected, providing a significant improvement in the detection of the smaller diameter or poorly earthed cables.
OVERLOAD PROTECTION
Optimised Locator Sensitivity and Noise Rejection means that the DXL4 can deal with the highest levels of background interference found, allowing even the weakest of signals to be detected successfully.
INTELLIGENT NEW FEATURES:
ALARM ZONE
AlarmZone™ alerts operators to the presence of particularly shallow pipes or cables with the exact trigger depth adjustable by the user to best suit local requirements.
DYNAMIC SWING SENSOR
The Dynamic SwingSensor which gently alerts the operator if the locator is being swung excessively, potentially compromising the accuracy of any locates.
PEAKHOLD
PeakHold allows operators to quickly and confidently pinpoint the exact position of buried services
DATA LOGGING
The DXL4-D and DXL4-DBG Cable Avoidance Tools have full data logging capability. A years worth of data can be stored, in normal usage, on both the Cable Avoidance Tool and the SGV4 Signal Generator.
DATA LOG TRANSFER via USB
This can be conveniently transferred at any time to supervisors for analysis via a USB cable to a PC (or wirelessly via Bluetooth™ from the DBG model only to a PC, tablet or smartphone).
DATA ANALYSIS
C.SCOPE PC ‘TOOLKIT’ and ‘RELAY’ Smartphone App
The free-to-download C.Scope PC Toolkit and C.Scope Relay smartphone App analyses the stored data-logs into charts and graphs that illustrate all aspects of the use allowing training requirements to be quickly identified.
GPS
The DXL4-DBG with in-built GPS allows a record to be kept of exactly where the Locators have been used that can then be viewed in partnership with Google Earth™ or Google Maps™.
Twelve months of GPS data is stored, in normal usage. This can be conveniently transferred at any time via a USB cable to a PC or wirelessly via Bluetooth™ to a PC, tablet or smartphone to supervisors for analysis. The free-to-download C.Scope PC Toolkit and Relay smartphone App analyses the stored data.
Additionally, the Locators can be paired to third party GPS Survey equipment, via the Locators in-built Bluetooth™ facilitating ‘one pass’ underground utility surveys to be undertaken.
CALIBRATION
The DXL4 Cable Avoidance Tools do not require periodic recalibration. A fully Automatic Daily Self Test (ADST) tests and confirms that they are functioning at their optimum level each day.
AUTOMATIC DAILY SELF TEST (ADST)
The DXL4 Cable Avoidance Tools perform an Automatic Daily Self Test (ADST). The ADST checks the functionality of the locator including the receiving aerials each day when it is first switched on. The SGV4 Signal Generator also performs a comprehensive Automatic Daily Self Test (ADST).
At the start of each day of use, a positive Automatic Daily Self Test result gives confirmation to the operator that the kit is working at the optimum level.
The result of this test is recorded and stored on memory within the products in-built data files and can be downloaded onto a PC at any time within the following 12 months*.
PRODUCT VALIDATION CERTIFICATION
These test results can be used to produce a Product Validation Certificate using the C.Scope PC Toolkit. In addition, any results of the Self Test that have been carried out in the last twelve months* are available.
C.Scope authorised Service Centres are also able to provide third-party Test and Conformity Certification should you require it to comply with client or internal requirements.
HIGH RESOLUTION BACKLIT DIGITAL DISPLAY
The DXL4 has a large, clear and easy to read backlit LCD mounted behind a protective polycarbonate lens. The display indicates detection mode, signal peak level, depth, signal strength and battery condition. It also displays the Automatic Daily Self Test results.
DETACHABLE SPEAKER
The speaker can be easily detached for use in noisy work environments.
ROBUST AND DURABLE CONSTRUCTION
The DXL4s twin wall construction is robust and durable. It also provides IP65 standard protection against dust and water ingress.
The DXL4 depth measuring Cable Avoidance Tool is available in two model types:
Both these products are designed for use with an SGA4 or an SGV4 Signal Generator.
Product name

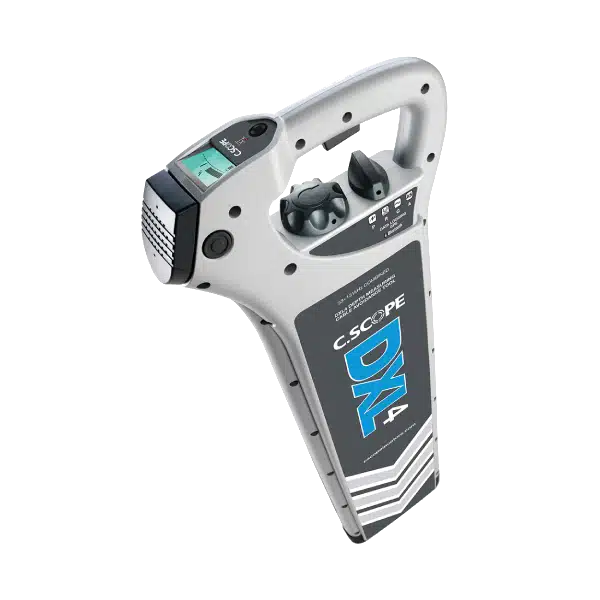

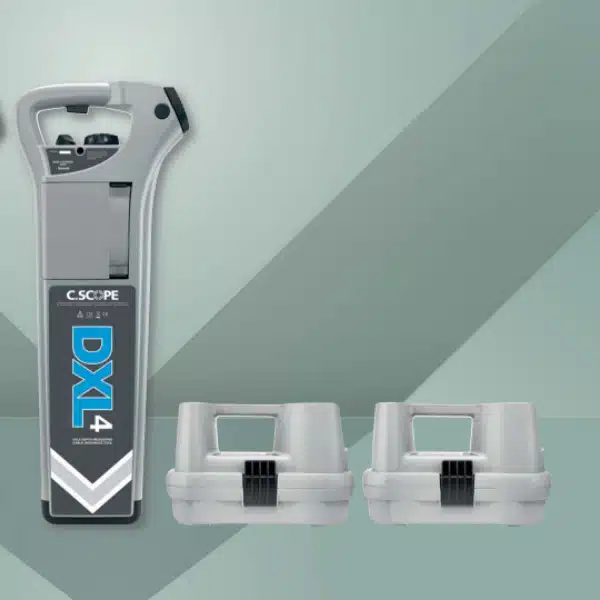

DXL4 Cable Avoidance Tool
Part Nos.
Controls
Audio Indication
Removable and user replaceable loudspeaker module
Visual Indication
Multi-segment Liquid Crystal Display indicating:
Data Logging
Internal capacity for storing over 12 months of data (in normal use) logged once per second. Data logged includes:
Bluetooth™
Bluetooth v2.1 (for Android) and v4.0 (for Apple iOS)
GPS
GPS/QZSS/GLONASS/SBAS
Data Connector
Standard USB Mini B connector in battery compartment. USB 2.0 Compatible
Self Test
Automatic Daily Self Test
Swing Indicator
Audio beep to indicate incorrect use of the Locator
Generator Mode Frequencies
Simultaneous 131.072kHz and 32.768kHz
Construction
Case moulded from high impact plastic. Designed to withstand 1m (3’3”) drop onto a hard surface
Weight (including batteries)
2.65kg (5 lb 13 oz)
Dimensions
720mm x 280mm x 65mm (28.3” x 11” x 2.5”)
Performance
Battery Type
Internal 8 x ‘AA’ (LR6) cells (either alkaline non-rechargeable or NiMH rechargeable)
Battery Life
40 hours intermittent use at 20ºC (68ºF) using alkaline cells
IP Rating
65
Network Rail Approved
Notes
Performance figures stated can be affected by site parameters such as ground conditions, temperature, and strong electromagnetic fields. Specification may be subject to change. All C.Scope Locators are in compliance with the essential requirements and other relevant provisions of Council Directive 2014/30/EU (EMC). Compliance has been demonstrated by testing representative samples to the relevant harmonised standards. All C.Scope Locators comply with the essential requirements and other provisions of Council Directive 2011/65/EU (RoHS).
The unique C.Scope Plastic Pipe Tracers are designed specifically to allow SMALL diameter, non-metallic pipes to be traced.
Developed as a result of requests from the British gas industry the C.Scope Plastic Pipe Tracers are the smallest diameter product on the market and can be successfully inserted into pipes when nothing else fits. Their unique construction gives unparalleled reliability and yet allows both ‘line’ tracing AND the all important ‘end’ tracing using the remarkable Sonde technology housed at the very tip of the Tracers.
Comes in 20 metre or 50 metre lengths
The C.Scope 8KHz & 33KHz Sonde is a small battery powered transmitter which, in typical use, would be screwed onto the end of a drain rod (a range of drain rod adaptors are available), and pushed down a pipe so that the pipe direction can be traced using the C.Scope locator set to ‘Signal Generator Mode’. The location of a pipe blockage can be identified using this system, with enormous cost saving potential.
The Signal Injector is an accessory that allows the Signal Generator signal to be safely applied to an electrical system via a conventional 3-pin power socket. This signal will then be detectable on the buried supply cable outside the building.
The C.Scope Signal Clamp is a safe and straightforward way to apply the Generator signal to a cable or small pipe to enable precision tracing of this service.
The C.Scope 8KHz & 33KHz Sonde is a small battery powered transmitter which, in typical use, would be screwed onto the end of a drain rod (a range of drain rod adaptors are available), and pushed down a pipe so that the pipe direction can be traced using the C.Scope locator set to ‘Signal Generator Mode’. The location of a pipe blockage can be identified using this system, with enormous cost saving potential.
Metal & Treasure Detector for Beach and Sand.
Operating System: Motion PI (automatic slow retune) Wide Band Pulse, optimised for beach operation.
Search-Head: 25cm POLO search head
Features: On/Off/Sensitivity control Belt mountable Adjustable stem length Counter balanced stem with armrest Headphone socket Weatherproof design
Ideal For: If you want to get serious about beach detecting, it doesn’t matter what detector you are using now, you have to get yourself a CS4PI.
